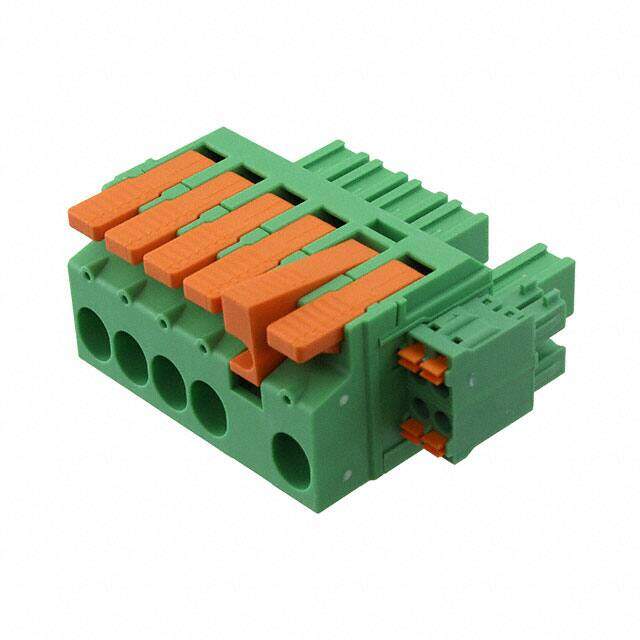

1717003 image
Favorite
1717003 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG HYBRID 5+4POS
PDF
/
Inventory: 969
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon, Glass Filled

Technical

Operating Temperature -40°C
Packaging Bulk
Series Power Combicon LPCH
Feature Lever Actuated
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Plug, Female Sockets
Number of Positions 9
Color Green
Pitch 0.300 7.62mm
Insulation Height 1.083 27.51mm
Termination Style Screwless - Push-In Spring
Number of Levels Hybrid
Contact Mating Finish Tin
Voltage - UL 600V
Wire Gauge or Range - AWG 8-18 AWG
Current - UL 35A
Voltage - IEC 1kV
Positions Per Level 9 (5 Power + 4 Signal)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-10mm2
Wire Strip Length 18mm
Current - IEC 41A

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
