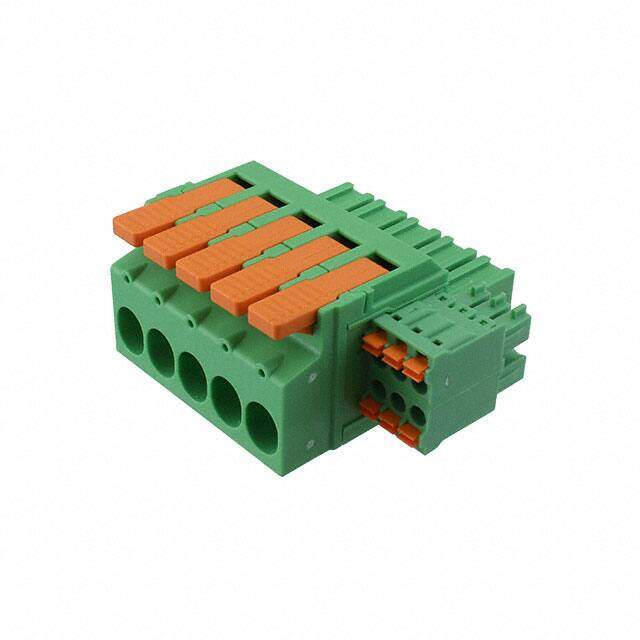

1716958
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG HYBRID 5+6POS
PDF
/
Inventory: 1151
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -40°C
Packaging Bulk
Series Power Combicon LPCH
Feature Lever Actuated
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Plug, Female Sockets
Number of Positions 11
Color Green
Pitch 0.300 7.62mm
Insulation Height 0.957 24.30mm
Termination Style Screwless - Push-In Spring
Number of Levels Hybrid
Contact Mating Finish Tin
Voltage - UL 600V
Wire Gauge or Range - AWG 8-18 AWG
Current - UL 35A
Voltage - IEC 1kV
Positions Per Level 11 (5 Power + 6 Signal)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-10mm2
Wire Strip Length 18mm
Current - IEC 41A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
