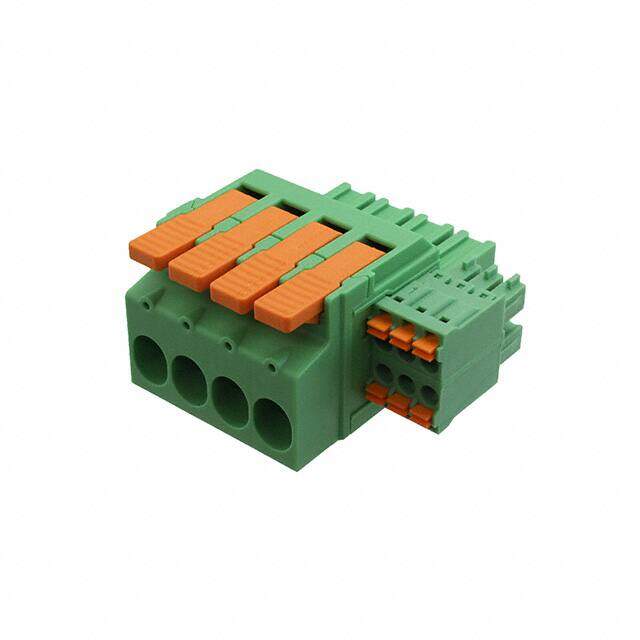

1716956
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG HYBRID 4+6POS
PDF
/
Buying Options
Total Price: USD $9.44
Unit Price: USD $9.4424
≥1 USD $9.4424
Inventory: 89
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 41A
Wire Strip Length 18mm
Wire Gauge or Range - mm2 0.75-10mm2
Plug Wire Entry 180°
Positions Per Level 10 (4 Power + 6 Signal)
Voltage - IEC 1kV
Current - UL 35A
Wire Gauge or Range - AWG 8-18 AWG
Voltage - UL 600V
Contact Mating Finish Tin
Number of Levels Hybrid
Termination Style Screwless - Push-In Spring
Insulation Height 0.957 24.30mm
Pitch 0.300 7.62mm
Color Green
Number of Positions 10
Type Plug, Female Sockets
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Lever Actuated
Series Power Combicon LPCH
Packaging Bulk
Operating Temperature -40°C
Physical
Housing Material Polyamide (PA), Nylon, Glass Filled
Mounting Type Free Hanging (In-Line)
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
