1716930
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

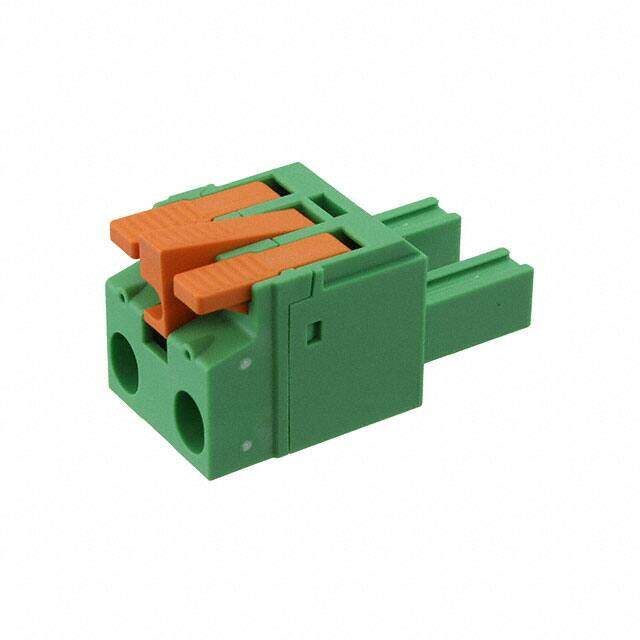

TERM BLOCK PLUG 7.62MM 2POS
PDF
/
Buying Options
Total Price: USD $3.22
Unit Price: USD $3.2208
≥1 USD $3.2208
Inventory: 102
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Free Hanging (In-Line)
Technical
Packaging Bulk
Series Power Combicon LPC
Feature Lever Actuated
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Plug, Female Sockets
Number of Positions 2
Color Green
Pitch 0.300 7.62mm
Insulation Height 0.957 24.30mm
Termination Style Screwless - Push-In Spring
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 600V
Wire Gauge or Range - AWG 8-18 AWG
Current - UL 35A
Voltage - IEC 1kV
Plug Wire Entry 180°
Current - IEC 41A
Compliance
RoHS Status RoHS Compliant
