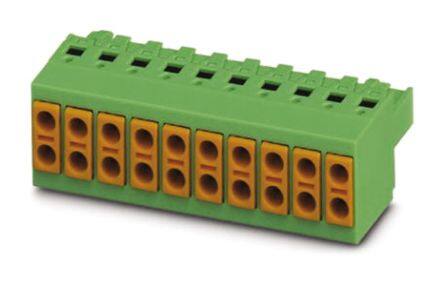

1715947 image
Favorite
1715947 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $5.61
Unit Price: USD $5.6144
≥1 USD $5.6144
Inventory: 76
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Current - IEC 10A
Wire Strip Length 8mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Positions Per Level 4 (Mate), 8 (Input)
Voltage - IEC 630V
Wire Gauge or Range - AWG 16-24 AWG
Contact Mating Finish Silver
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 16 AWG
Current 8A
Number of Levels 1 (Mate), 2 (Input)
Voltage 300V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 10A
Insulation Height 0.591 15.00mm
Pitch 0.197 5.00mm
Voltage - Rated 250V
Gender Female
Color Green
Number of Positions 4
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series COMBICON TVFKCL
Published 2011
Packaging Bulk

Physical

Weight 1.59982kg
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
