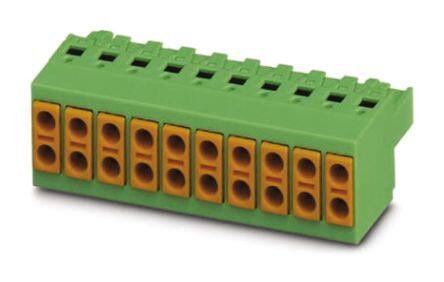

1715934
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5mm pitch Plug 24-16AWG Spring
PDF
/
Inventory: 1231
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 5.161995g
Technical
Packaging Bulk
Published 2011
Series COMBICON TVFKCL
Feature Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 3
Color Green
Number of Rows 2
Gender Female
Voltage - Rated 250V
Pitch 0.197 5.00mm
Orientation Straight
Depth 25.8mm
Insulation Height 0.591 15.00mm
Current Rating 10A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 300V
Max Supply Voltage 320V
Max Current Rating 10A
Number of Levels 1 (Mate), 2 (Input)
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Silver
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 630V
Positions Per Level 3 (Mate), 6 (Input)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 8mm
Dimensions
Height 15mm
Length 15mm
Width 25.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
