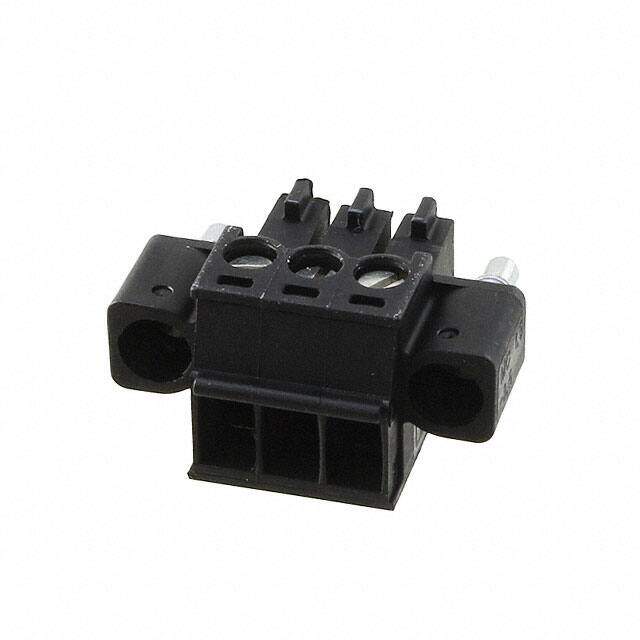

1715400 image
Favorite
1715400 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 3POS STR 3.5MM
PDF
/
Buying Options
Total Price: USD $2.51
Unit Price: USD $2.508
≥1 USD $2.508
Inventory: 64
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Screw Size M2
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval CB; CCA; CUL; GOST; UL; VDE
Number of Ways 3
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 0.437 11.10mm
Orientation Right Angle
Pitch 0.138 3.50mm
Voltage - Rated 160V
Number of Rows 1
Color Black
Number of Positions 3
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange
Series COMBICON MC
Published 2011
Packaging Bulk

Physical

Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 11 Weeks
