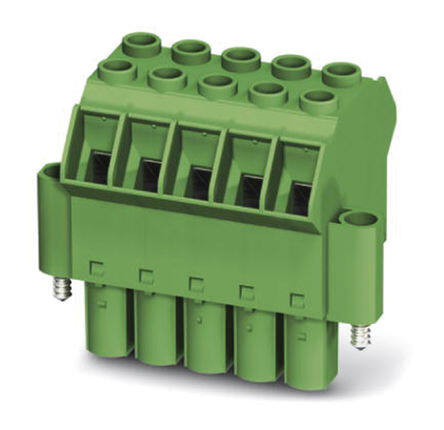

1715329
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 9 Pos 10.16mm pitch Plug 18-6 AWG Screw
PDF
/
Buying Options
Total Price: USD $169.49
Unit Price: USD $169.488826
≥1 USD $169.488826
≥200 USD $67.627479
≥500 USD $65.367978
≥1000 USD $64.2507
Inventory: 1524
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Screw Size M4
Current - IEC 76A
Wire Strip Length 18mm
Wire Gauge or Range - mm2 0.75-16mm2
Plug Wire Entry 180°
Positions Per Level 9 (Mate), 18 (Input)
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 4-20 AWG
Contact Mating Finish Silver
Wire Gauge (Min) 18 AWG
Wire Gauge (Max) 6 AWG
Current 60A
Number of Levels 1 (Mate), 2 (Input)
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 76A
Reach Compliance Code not_compliant
Insulation Height 2.024 51.40mm
Pitch 0.400 10.16mm
Voltage - Rated 1kV
Gender Female
Color Green
Number of Positions 9
Type Plug, Female Sockets
Connector Type Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange
Series COMBICON TPC
Published 2011
Packaging Bulk
Physical
Weight 22.219988g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Silver
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 13 Weeks
