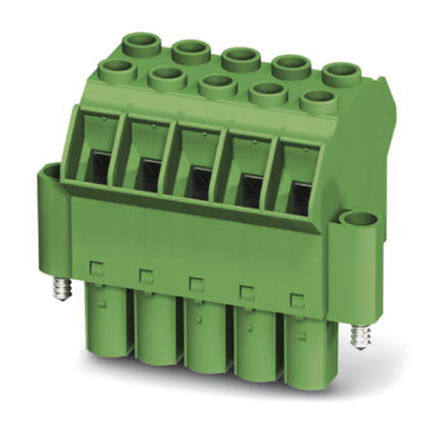

1715293
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 10.16mm pitch Plug 18-6 AWG Screw
PDF
/
Buying Options
Total Price: USD $129.81
Unit Price: USD $129.810362
≥1 USD $129.810362
≥200 USD $51.795218
≥500 USD $50.064816
≥1000 USD $49.210118
Inventory: 1135
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Silver
Housing Material Polyamide (PA), Nylon
Weight 1.200205kg
Technical
Packaging Bulk
Published 2011
Series COMBICON TPC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 6
Color Green
Number of Rows 2
Gender Female
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
Pitch 0.400 10.16mm
Insulation Height 2.024 51.40mm
Current Rating 76A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1 (Mate), 2 (Input)
Current 60A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 4 AWG
Contact Mating Finish Silver
Number of Decks 1
Wire Gauge or Range - AWG 4-20 AWG
Voltage - IEC 1kV
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Positions Per Level 6 (Mate), 12 (Input)
Number of Ways 6
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-16mm2
Wire Strip Length 18mm
Current - IEC 76A
Screw Size M4
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
