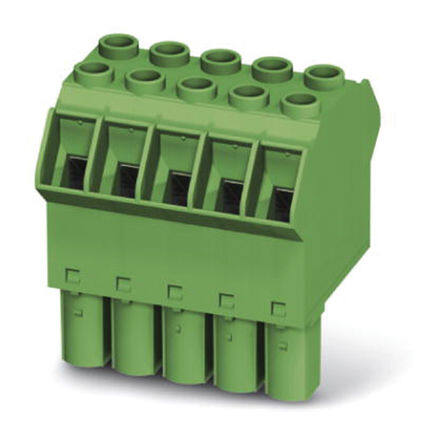

1715219
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 10.16mm pitch Plug 18-6 AWG Screw
PDF
/
Buying Options
Total Price: USD $111.85
Unit Price: USD $111.853828
≥1 USD $111.853828
≥200 USD $44.630723
≥500 USD $43.139268
≥1000 USD $42.402731
Inventory: 1087
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Silver
Housing Material Polyamide (PA), Nylon
Weight 600.102706g
Technical
Packaging Bulk
Published 2011
Series COMBICON TPC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 6
Color Green
Number of Rows 2
Gender Female
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
Pitch 0.400 10.16mm
Insulation Height 2.024 51.40mm
Current Rating 76A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1 (Mate), 2 (Input)
Current 60A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 4 AWG
Contact Mating Finish Silver
Number of Decks 1
Wire Gauge or Range - AWG 4-20 AWG
Voltage - IEC 1kV
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Positions Per Level 6 (Mate), 12 (Input)
Number of Ways 6
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-16mm2
Wire Strip Length 18mm
Current - IEC 76A
Screw Size M4
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
