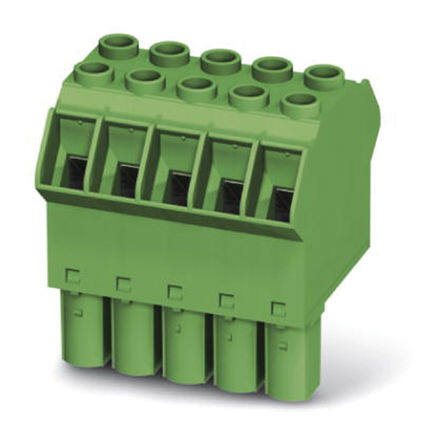

1715196
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 10.16mm pitch Plug 18-6 AWG Screw
PDF
/
Buying Options
Total Price: USD $74.51
Unit Price: USD $74.51364
≥1 USD $74.51364
≥200 USD $29.731933
≥500 USD $28.738068
≥1000 USD $28.247044
Inventory: 6897
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire Cross Section 16 mm2
Screw Size M4
Current - IEC 76A
Wire Strip Length 18mm
Wire Gauge or Range - mm2 0.75-16mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 4
Positions Per Level 4 (Mate), 8 (Input)
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 4-20 AWG
Number of Decks 1
Contact Mating Finish Silver
Wire Gauge (Min) 4 AWG
Wire Gauge (Max) 20 AWG
Current 60A
Number of Levels 1 (Mate), 2 (Input)
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 76A
Insulation Height 2.024 51.40mm
Pitch 0.400 10.16mm
Voltage - Rated 1kV
Gender Female
Number of Rows 2
Color Green
Number of Positions 4
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON TPC
Published 2011
Packaging Bulk
Physical
Weight 106.900013g
Housing Material Polyamide (PA), Nylon
Material Polyamide, Silver
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 12 Weeks
