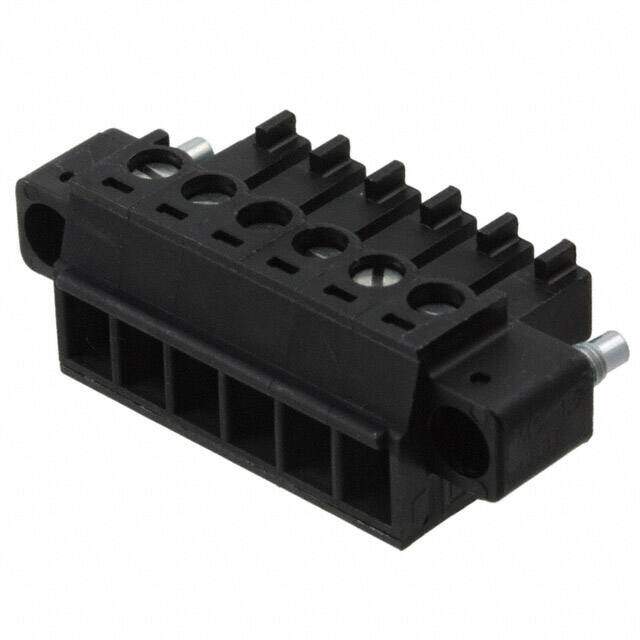

1714964 image
Favorite
1714964 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn PC Terminal Block F 6 POS 3.81mm Screw 8A
PDF
/
Buying Options
Total Price: USD $5.95
Unit Price: USD $5.9488
≥1 USD $5.9488
≥10 USD $5.78776
≥100 USD $5.40936
≥500 USD $4.976664
≥1000 USD $4.883437
Inventory: 258
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Weight 35.000009g

Technical

Packaging Bulk
Published 2011
Series COMBICON MC
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Black
Voltage - Rated 160V
Pitch 0.150 3.81mm
Insulation Height 0.437 11.10mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 6
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 160V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2

Dimensions

Height 16.1mm
Length 11.1mm
Width 33.25mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
