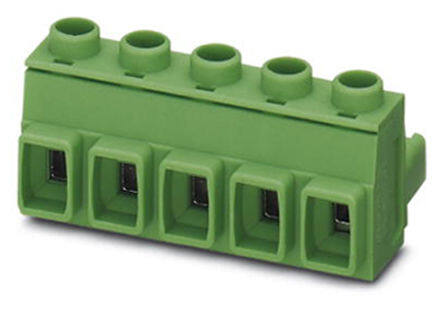

1714317
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 7.62mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $10.1
Unit Price: USD $10.1024
≥1 USD $10.1024
≥10 USD $9.83048
≥100 USD $9.1872
≥500 USD $8.452224
≥1000 USD $8.294
Inventory: 136
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 35.000009g
Technical
Packaging Bulk
Published 2011
Series COMBICON GMSTB
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 6
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
Pitch 0.300 7.62mm
Insulation Height 0.689 17.50mm
Current Rating 16A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 18.5A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 6
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 8mm
Current - IEC 16A
Screw Size M3
Wire Cross Section 2.5 mm2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
