1714294
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

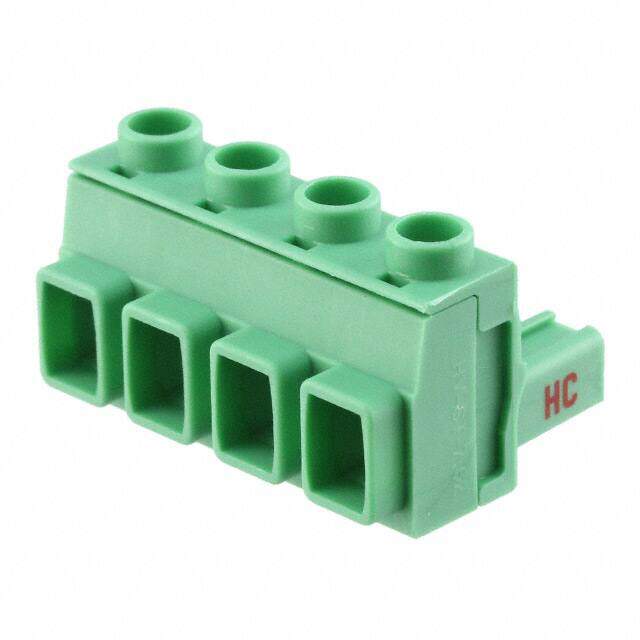

Terminal block; PCB; Plug; Female Sockets; 4 position; 16A; 1000V
PDF
/
Buying Options
Total Price: USD $6.74
Unit Price: USD $6.7408
≥1 USD $6.7408
≥10 USD $6.55952
≥100 USD $6.13008
≥500 USD $5.639656
≥1000 USD $5.534109
Inventory: 434
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 35.000009g
Technical
Packaging Bulk
Published 2010
Series COMBICON GMSTB
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 4
Color Green
Number of Rows 1
Voltage - Rated 1kV
Pitch 0.300 7.62mm
Insulation Height 0.689 17.50mm
Current Rating 16A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 18.5A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 4
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 8mm
Current - IEC 16A
Screw Size M3
Wire Cross Section 2.5 mm2
Dimensions
Height 21mm
Length 17.5mm
Width 30.26mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
