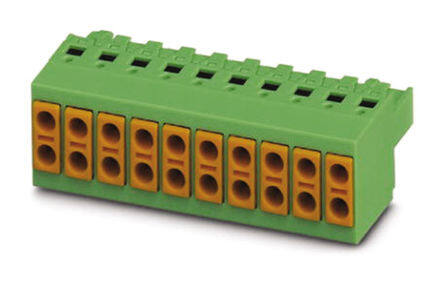

1713871
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 5mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $10.12
Unit Price: USD $10.12
≥1 USD $10.12
≥10 USD $9.8472
≥100 USD $9.20304
≥500 USD $8.466832
≥1000 USD $8.308291
Inventory: 105
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 1.999889kg
Technical
Packaging Bulk
Published 2011
Series COMBICON TVFKC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 6
Color Green
Number of Rows 2
Gender Female
Voltage - Rated 250V
Additional Feature PA, UL 94V-0
Pitch 0.197 5.00mm
Insulation Height 0.591 15.00mm
Current Rating 10A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 300V
Number of Levels 1 (Mate), 2 (Input)
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 630V
Positions Per Level 6 (Mate), 12 (Input)
Number of Ways 6
Fastening Method SPRING LOADED
Wire Cross Section 1.5 mm2
Current - IEC 10A
Wire Strip Length 8mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
