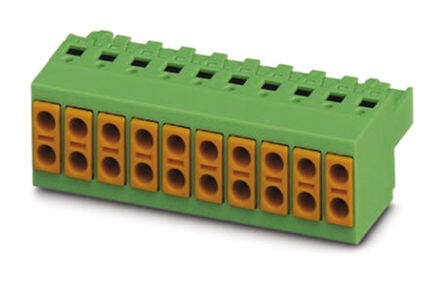

1713839
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 5mm pitch Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $14.83
Unit Price: USD $14.8294
≥1 USD $14.8294
≥10 USD $13.99
≥100 USD $13.19811
≥500 USD $12.45105
≥1000 USD $11.74627
≥3000 USD $11.08139
Inventory: 550
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 3.289991g
Technical
Packaging Bulk
Published 2010
Series COMBICON TVFKC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 2
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Orientation Straight
Depth 23.3mm
Insulation Height 0.591 15.00mm
Current Rating 10A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 300V
Max Supply Voltage 320V
Max Current Rating 10A
Number of Levels 1 (Mate), 2 (Input)
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 630V
Positions Per Level 2 (Mate), 4 (Input)
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 8mm
Fastening Method SPRING LOADED
Dimensions
Height 15mm
Length 10mm
Width 23.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
