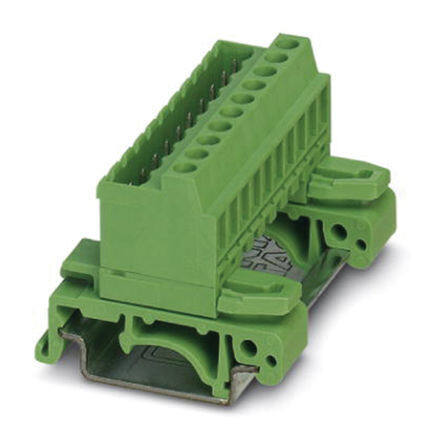

1711433
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 10.16mm pitch Plug 18-4 AWG Spring
PDF
/
Buying Options
Total Price: USD $81.43
Unit Price: USD $81.432623
≥1 USD $81.432623
≥200 USD $32.492962
≥500 USD $31.407194
≥1000 USD $30.870218
Inventory: 1143
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 1.59982kg
Technical
Packaging Bulk
Published 1998
Series COMBICON SPC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 8
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
Pitch 0.400 10.16mm
Insulation Height 0.988 25.10mm
Current Rating 76A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 600V
Number of Levels 1
Current 66A
Wire Gauge (Max) 4 AWG
Wire Gauge (Min) 18 AWG
Contact Mating Finish Silver
Number of Decks 1
Wire Gauge or Range - AWG 4-20 AWG
Voltage - IEC 1kV
Number of Ways 8
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-16mm2
Wire Strip Length 18mm
Current - IEC 76A
Fastening Method SPRING LOADED
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
