1711378
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

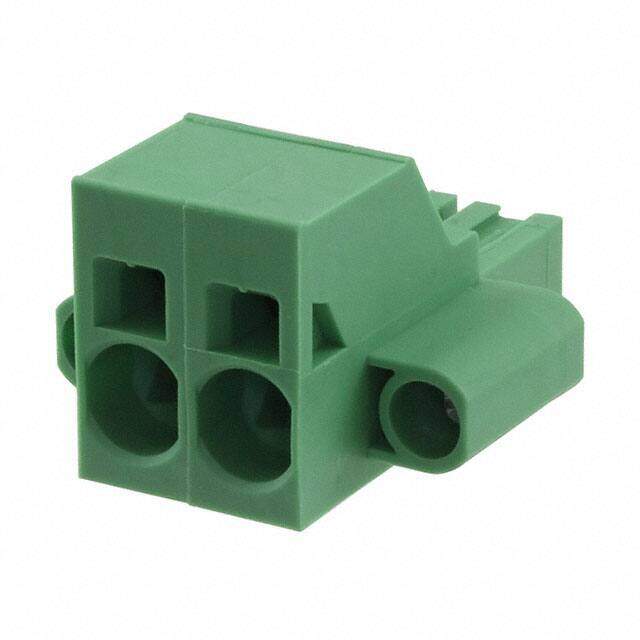

Pluggable Terminal Blocks 2 Pos 10.16mm pitch Plug 18-4 AWG Spring
PDF
/
Buying Options
Total Price: USD $11.97
Unit Price: USD $11.969801
≥1 USD $11.969801
≥10 USD $11.292261
≥100 USD $10.653087
≥500 USD $10.050077
≥1000 USD $9.481203
Inventory: 6052
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Silver
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 600.102706g
Technical
Packaging Bulk
Published 2011
Series COMBICON SPC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 2
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.400 10.16mm
Orientation Straight
Insulation Height 0.988 25.10mm
Reach Compliance Code unknown
Current Rating 76A
Termination Style Screwless - Spring Cage, Tension Clamp
Number of Contacts 2
Voltage 600V
Max Current Rating 76A
Number of Levels 1
Current 66A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 4 AWG
Number of Decks 1
Wire Gauge or Range - AWG 4-20 AWG
Voltage - IEC 1kV
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-16mm2
Wire Strip Length 18mm
Fastening Method SPRING LOADED
Dimensions
Height 38.08mm
Length 25.1mm
Width 44.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
