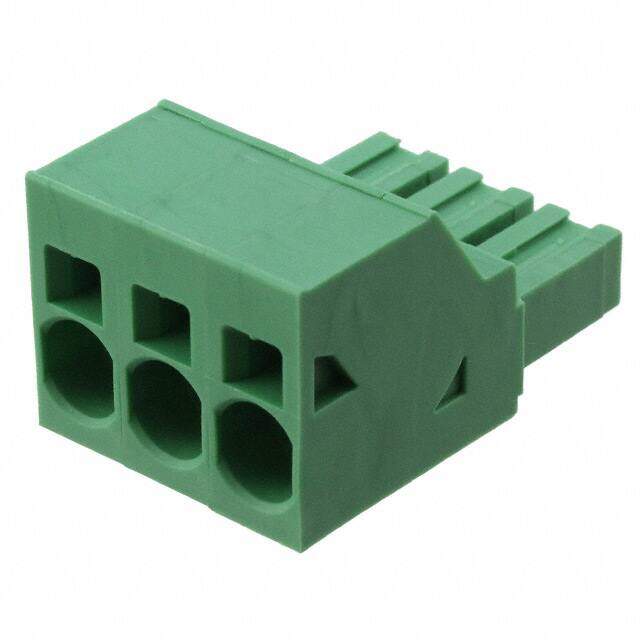

1711271 image
Favorite
1711271 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 3 Pos 10.16mm pitch Plug 18-4 AWG Spring
PDF
/
Buying Options
Total Price: USD $12.27
Unit Price: USD $12.2672
≥1 USD $12.2672
≥10 USD $11.93192
≥100 USD $11.15136
≥500 USD $10.259304
≥1000 USD $9.478656
≥3000 USD $9.032637
Inventory: 198
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Mount Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 24.799993g

Technical

Packaging Bulk
Published 1998
Series COMBICON SPC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
Pitch 0.400 10.16mm
Orientation Straight
Depth 25.1mm
Insulation Height 0.988 25.10mm
Reach Compliance Code unknown
Current Rating 76A
Termination Style Screwless - Spring Cage, Tension Clamp
Approval Agency CB, UL
Voltage 600V
Number of Levels 1
Current 66A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 4 AWG
Number of Poles 3
Contact Mating Finish Silver
Number of Decks 1
Wire Gauge or Range - AWG 4-20 AWG
Voltage - IEC 1kV
Number of Ways 3
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.75-16mm2
Wire Strip Length 18mm
Current - IEC 76A
Fastening Method SPRING LOADED

Dimensions

Length 30.48mm
Width 44.5mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
