1709453
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

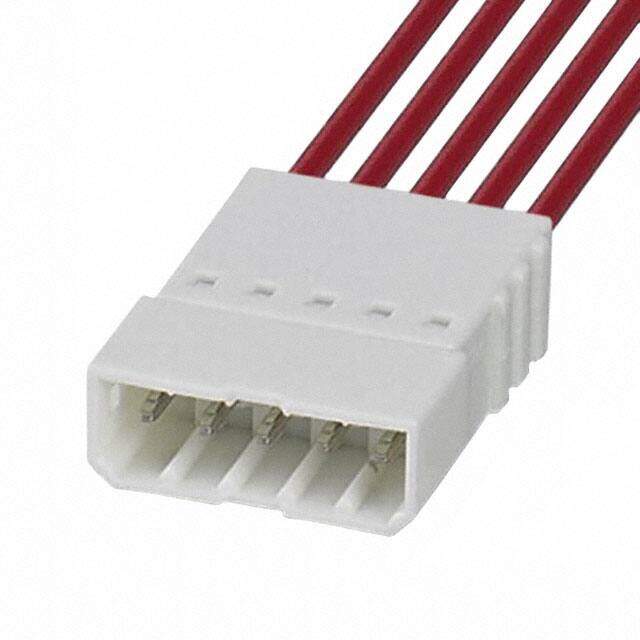

TERM BLOCK PLUG 5POS STR 2.5MM
PDF
/
Buying Options
Total Price: USD $1.82
Unit Price: USD $1.8216
≥1 USD $1.8216
≥10 USD $1.7424
≥100 USD $1.69488
≥500 USD $1.584
≥1000 USD $1.45728
≥3000 USD $1.43
Inventory: 1115
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Current - IEC 6A
Wire Gauge or Range - mm2 0.14-0.5mm2
Plug Wire Entry 180°
Voltage - IEC 160V
Wire Gauge or Range - AWG 20-26 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 26 AWG
Current 5A
Number of Levels 1
Voltage 150V
Termination Style Screwless - Leg Spring, Push-In Spring
Pitch 0.098 2.50mm
Color White
Number of Positions 5
Type Plug, Male Pins
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series COMBICON PTSM
Published 2016
Packaging Bulk
Physical
Housing Material Plastic
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 8 Weeks
Alternative Model
