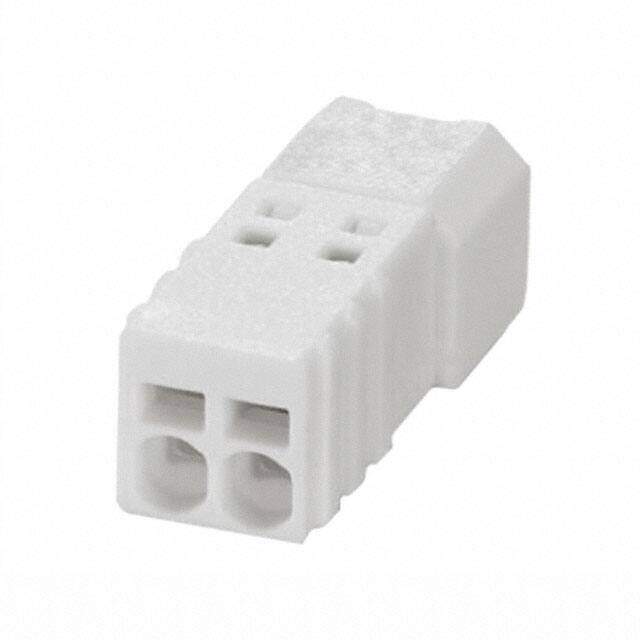

1709450
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 2POS STR 2.5MM
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
≥10 USD $0.82896
≥100 USD $0.79288
≥500 USD $0.771144
≥1000 USD $0.72072
≥3000 USD $0.663062
Inventory: 1187
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Plastic
Technical
Packaging Bulk
Published 2016
Series COMBICON PTSM
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screwless
ECCN Code EAR99
Type Plug, Male Pins
Number of Positions 2
Color White
HTS Code 8536.69.40.40
Pitch 0.098 2.50mm
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 150V
Number of Levels 1
Current 5A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 20 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 20-26 AWG
Voltage - IEC 160V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-0.5mm2
Current - IEC 6A
Compliance
RoHS Status RoHS Compliant
