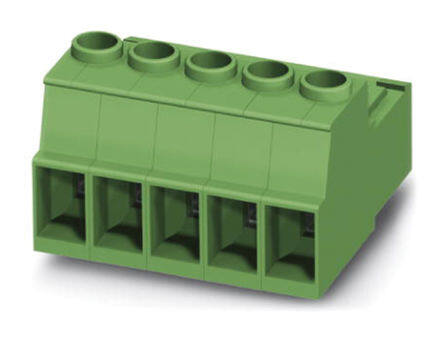

1709076
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Terminal Blocks F 5 POS 7.62mm Screw RA Cable Mount 41A
PDF
/
Buying Options
Total Price: USD $14.52
Unit Price: USD $14.52
≥1 USD $14.52
≥10 USD $14.12664
≥100 USD $13.20264
≥500 USD $12.146464
≥1000 USD $11.222253
≥3000 USD $10.694182
Inventory: 122
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 907.18474g
Technical
Packaging Bulk
Published 2011
Series COMBICON IPC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Male Pins
Number of Positions 5
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
Additional Feature PA, UL 94V-0
Pitch 0.300 7.62mm
Orientation Right Angle
Insulation Height 0.902 22.90mm
Current Rating 41A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Max Supply Voltage 1kV
Max Current Rating 41A
Number of Levels 1
Current 41A
Wire Gauge (Max) 10 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 8-24 AWG
Torque - Screw 0.7-0.8 Nm (6.2-7.1 Lb-In)
Number of Ways 5
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-10mm2
Wire Strip Length 10mm
Number of Positions Per Level 5
Screw Size M3
Dimensions
Length 38.1mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
