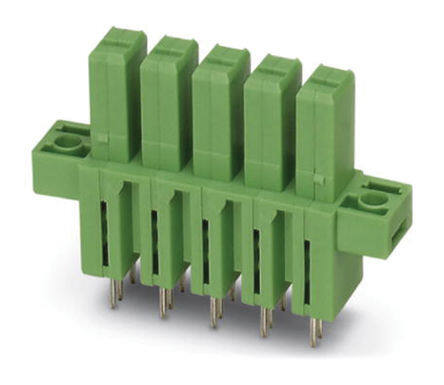

1709005 image
Favorite
1709005 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 9 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Inventory: 2821
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 83.8mm

Technical

Header Orientation Vertical
Safety Approval UL
Number of Ways 9
Voltage - IEC 1kV
Number of Decks 1
Voltage - UL 600V
Contact Mating Finish Tin
Current 5A
Number of Levels 1
Max Current Rating 41A
Contact Tail Length 0.197 5.00mm
Voltage 600V
Termination Style Solder
Current Rating 41A
Insulation Height 1.185 30.10mm
Depth 12.8mm
Pitch 0.300 7.62mm
Voltage - Rated 630V
Number of Rows 1
Color Green
Number of Positions 9
Type Header, Female Sockets
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON IPCV
Published 2012
Packaging Bulk

Physical

Weight 22.219988g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 7 Weeks
