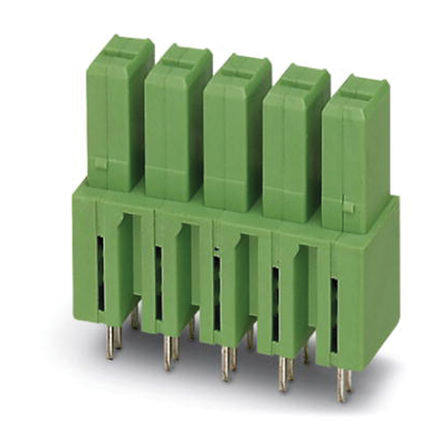

1708909
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 10 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Inventory: 3779
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 34.899992g
Technical
Packaging Bulk
Published 2011
Series COMBICON IPCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Female Sockets
Number of Positions 10
Color Green
Number of Rows 1
Voltage - Rated 630V
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.300 7.62mm
Depth 12.8mm
Insulation Height 1.185 30.10mm
Current Rating 41A
Termination Style Solder
Voltage 600V
Contact Tail Length 0.197 5.00mm
Max Current Rating 41A
Number of Levels 1
Current 5A
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 10
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 10
Dimensions
Length 76.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
