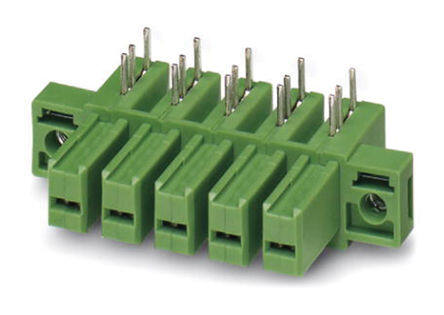

1708792
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 10 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Inventory: 6994
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 91.4mm
Technical
Number of Positions Per Level 10
Header Orientation 90°, Right Angle, Under Board
Safety Approval UL
Number of Ways 10
Voltage - IEC 1kV
Number of Decks 1
Current 5A
Number of Levels 1
Max Current Rating 41A
Contact Tail Length 0.197 5.00mm
Voltage 600V
Termination Style Solder
Current Rating 41A
Insulation Height 0.504 12.80mm
Depth 30.1mm
Orientation Right Angle
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 630V
Number of Rows 1
Color Green
Number of Positions 10
Type Header, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON IPC
Published 2011
Packaging Bulk
Physical
Weight 22.219988g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
