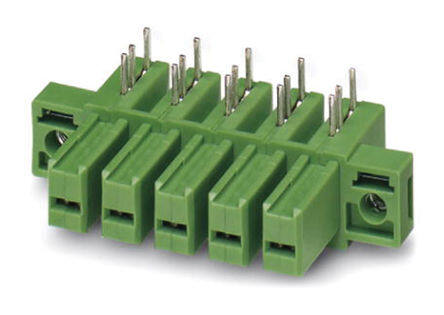

1708734
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $8.76
Unit Price: USD $8.756
≥1 USD $8.756
≥10 USD $8.51664
≥100 USD $7.9596
≥500 USD $7.322832
≥1000 USD $6.765651
≥3000 USD $6.447302
Inventory: 106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 453.59237g
Technical
Packaging Bulk
Published 2011
Series COMBICON IPC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Female Sockets
Number of Positions 4
Color Green
Number of Rows 1
Voltage - Rated 630V
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 30.1mm
Insulation Height 0.504 12.80mm
Current Rating 41A
Termination Style Solder
Voltage 600V
Contact Tail Length 0.197 5.00mm
Max Current Rating 41A
Number of Levels 1
Current 5A
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 4
Safety Approval UL
Header Orientation 90°, Right Angle, Under Board
Number of Positions Per Level 4
Dimensions
Length 45.68mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
