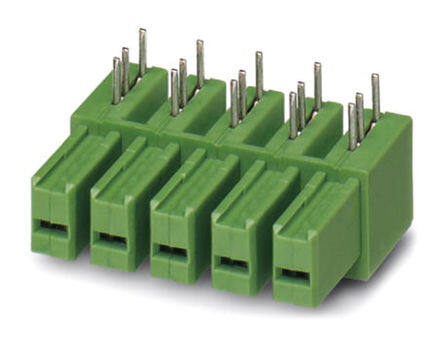

1708666
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Inventory: 4971
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 22.219988g
Technical
Packaging Bulk
Published 2011
Series COMBICON IPC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Female Sockets
Number of Positions 8
Color Green
Number of Rows 1
Voltage - Rated 630V
Additional Feature PA, UL 94V-0
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 30.1mm
Insulation Height 0.504 12.80mm
Current Rating 41A
Termination Style Solder
Voltage 600V
Contact Tail Length 0.197 5.00mm
Max Current Rating 41A
Number of Levels 1
Current 5A
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 8
Safety Approval UL
Header Orientation 90°, Right Angle, Under Board
Number of Positions Per Level 8
Dimensions
Length 60.96mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
