1708595
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

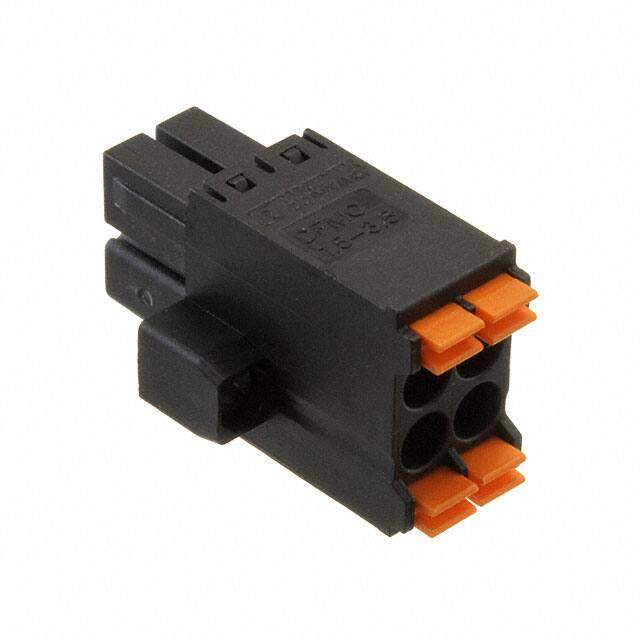

TERM BLOCK PLUG 4POS STR 3.5MM
PDF
/
Buying Options
Total Price: USD $2.9
Unit Price: USD $2.904
≥1 USD $2.904
≥10 USD $2.82216
≥100 USD $2.63736
≥500 USD $2.426336
≥1000 USD $2.380963
Inventory: 184
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Rated Voltage 160V
Fastening Method SPRING LOADED
Rated Current 8A
Current - IEC 8A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Number of Ways 2
Positions Per Level 2
Voltage - IEC 160V
Number of Decks 1
Contact Mating Finish Tin
Termination Style Screwless - Push-In Spring
Insulation Height 0.522 13.25mm
Pitch 0.138 3.50mm
Number of Rows 1
Color Black
Number of Positions 4
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange
Series COMBICON DFMC
Published 2015
Packaging Bulk
Physical
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 13 Weeks
