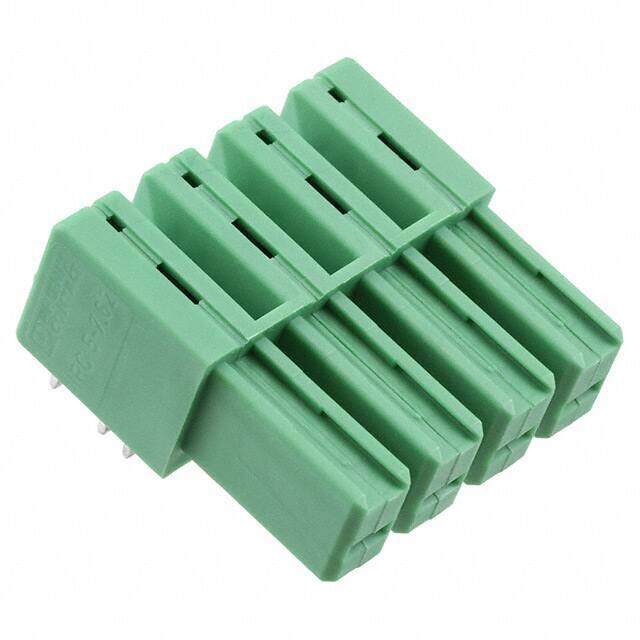

1708404
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $8.31
Unit Price: USD $8.3072
≥1 USD $8.3072
≥10 USD $8.08456
≥100 USD $7.55568
≥500 USD $6.951208
≥1000 USD $6.422346
≥3000 USD $6.120118
Inventory: 147
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 30.48mm
Length 30.48mm
Height 30.1mm
Technical
Number of Positions Per Level 4
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 4
Voltage - IEC 1kV
Number of Decks 1
Current 5A
Number of Levels 1
Max Current Rating 41A
Contact Tail Length 0.197 5.00mm
Voltage 600V
Termination Style Solder
Current Rating 41A
Insulation Height 0.504 12.80mm
Depth 30.1mm
Orientation Right Angle
Pitch 0.300 7.62mm
Voltage - Rated 630V
Number of Rows 1
Color Green
Number of Positions 4
Type Header, Female Sockets
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON IPC
Published 2011
Packaging Bulk
Physical
Weight 600.102706g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
