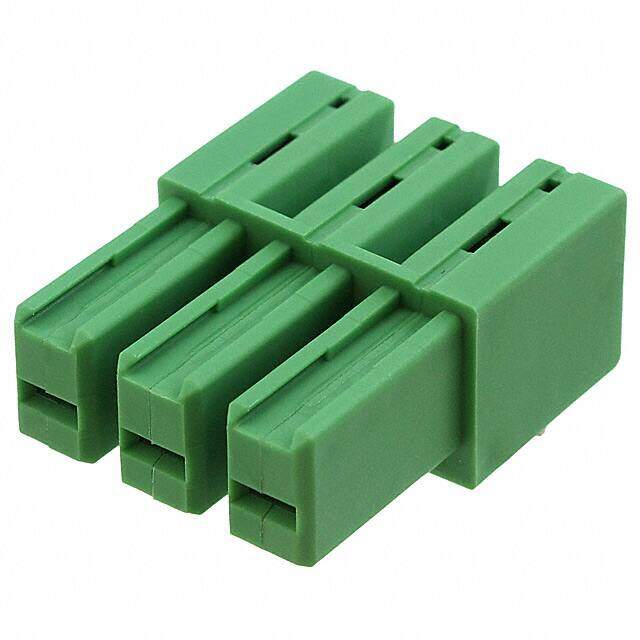

1708394
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $4.44
Unit Price: USD $4.444
≥1 USD $4.444
Inventory: 68
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 3
Current - IEC 41A
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 3
Voltage - IEC 1kV
Number of Decks 1
Voltage - UL 600V
Current 5A
Number of Levels 1
Contact Tail Length 0.197 5.00mm
Voltage 600V
Termination Style Solder
Current Rating 41A
Reach Compliance Code unknown
Insulation Height 0.504 12.80mm
Pitch 0.300 7.62mm
Additional Feature PA, UL 94V-0
Voltage - Rated 630V
Number of Rows 1
Color Green
Type Header, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON IPC
Published 2011
Packaging Bulk
Physical
Weight 1.50003kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
