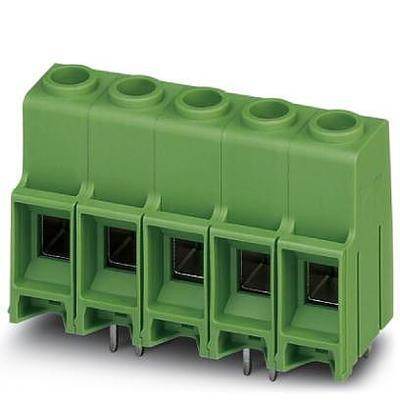

1707942 image
Favorite
1707942 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Socket enclosure - cable FKC Total number of pins 18 Phoenix Contact 1707942 Contact spacing: 5.08 mm 50 pc(s)
PDF
/
Buying Options
Total Price: USD $49.96
Unit Price: USD $49.957158
≥1 USD $49.957158
≥200 USD $19.933761
≥500 USD $19.266808
≥1000 USD $18.938583
Inventory: 4854
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 101.54mm
Length 15mm
Height 25.6mm

Technical

Number of Positions Per Level 18
Current - IEC 12A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-26 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.200 5.08mm
Voltage - Rated 630V
Gender Female
Color Green
Type Plug, Female Sockets
Connector Type Socket
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange, Retention Latches (Non-Wire Side)
Series COMBICON FKC
Published 2014
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
