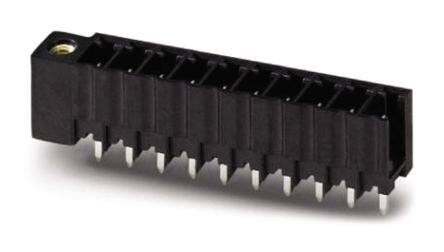

1707764
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 3.81mm pitch Through Hole Header
PDF
/
Inventory: 1126
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2011
Series COMBICON MCV
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (3 Side)
Color Black
Number of Rows 1
Voltage - Rated 160V
Additional Feature LCP, UL 94V-0
Pitch 0.150 3.81mm
Depth 7.25mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 250V
Number of Ways 11
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 8
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
