1707463
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

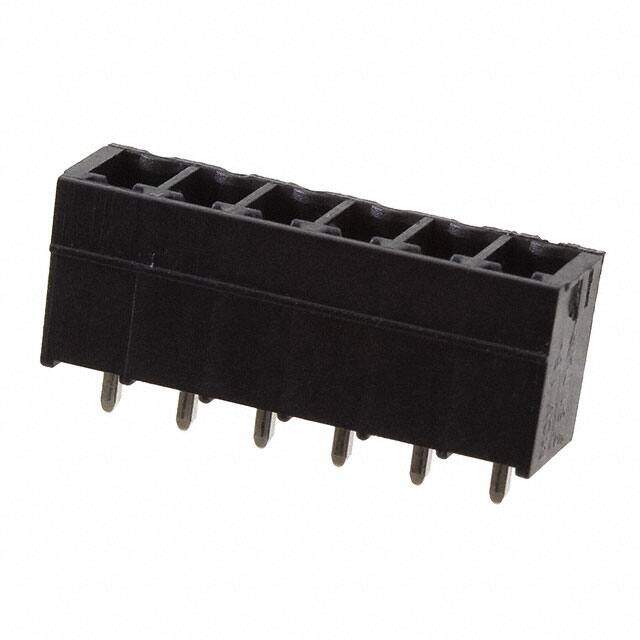

Pluggable Terminal Blocks 6 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.36
Unit Price: USD $2.3584
≥1 USD $2.3584
≥10 USD $2.2968
≥100 USD $2.14632
≥500 USD $1.974632
≥1000 USD $1.937654
Inventory: 138
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2011
Series COMBICON MCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Voltage - Rated 160V
Additional Feature LCP, UL 94V-0
Pitch 0.150 3.81mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Current 8A
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 250V
Number of Ways 6
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 6
Dimensions
Height 11.8mm
Length 7.25mm
Width 24.25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
