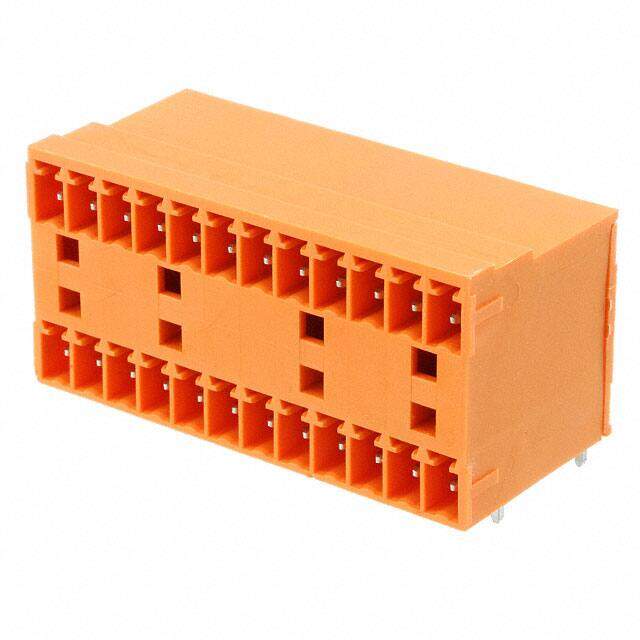

1706875
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 24POS 3.81MM
PDF
/
Buying Options
Total Price: USD $9.27
Unit Price: USD $9.2664
≥1 USD $9.2664
Inventory: 40
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 47.11mm
Length 21.9mm
Height 26.2mm
Technical
Header Orientation 90°, Right Angle
Positions Per Level 12
Voltage - IEC 160V
Current 8A
Number of Levels 2
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.894 22.71mm
Pitch 0.150 3.81mm
Voltage - Rated 160V
Number of Rows 1
Color Orange
Number of Positions 24
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON MCD
Published 2011
Packaging Bulk
Physical
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 5 Weeks
