1706254
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

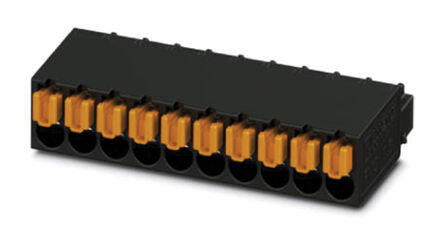

Phoenix Contact MICRO COMBICON FMC Series 2.54mm Pitch Pluggable Terminal Block, Plug with Spring Cage Termination
PDF
/
Inventory: 1145
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 23.32mm
Length 15.4mm
Technical
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.14-0.5mm2
Plug Wire Entry 180°
Wire Gauge or Range - AWG 20-26 AWG
Voltage - UL 150V
Contact Mating Finish Gold
Number of Levels 1
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 6A
Insulation Height 0.211 5.35mm
Depth 5.4mm
Pitch 0.100 2.54mm
Voltage - Rated 160V
Gender Female
Color Black
Number of Positions 9
Type Plug, Female Sockets
Part Status Active
Series MICRO-COMBICON FMC
Published 2015
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Material Gold, Polymer
Mounting Type Free Hanging (In-Line)
Supply Chain
Factory Lead Time 10 Weeks
