1705504
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

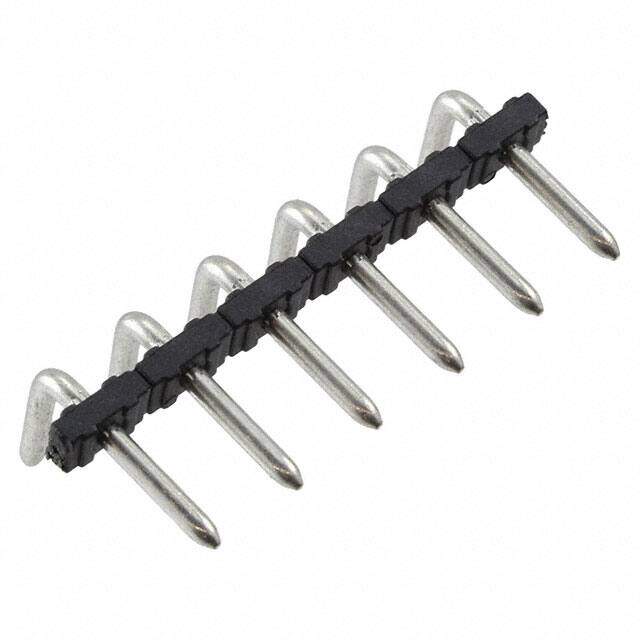

Headers & Wire Housings 6 Pos 5mm pitch Thru Hole Pin Strip
PDF
/
Buying Options
Total Price: USD $0.74
Unit Price: USD $0.7392
≥1 USD $0.7392
≥10 USD $0.70576
≥100 USD $0.6864
≥500 USD $0.64152
≥1000 USD $0.590198
≥3000 USD $0.579146
Inventory: 110
Minimum: 1
-
+
Technical Details
Technical
Header Orientation 90°, Right Angle
Number of Positions Per Level 6
Fastening Method CONNECTOR
Safety Approval CUL; GOST; UL
Number of Ways 6
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 16A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.266 6.75mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.110 2.79mm
Depth 12.5mm
Orientation Right Angle
Pitch 0.197 5.00mm
Additional Feature STANDARD: UL 94V-0, PA
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Black
Number of Positions 6
Type Header, Male Pins, Unshrouded
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON PST
Published 2011
Packaging Bulk
Dimensions
Height 12.5mm
Length 30mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
