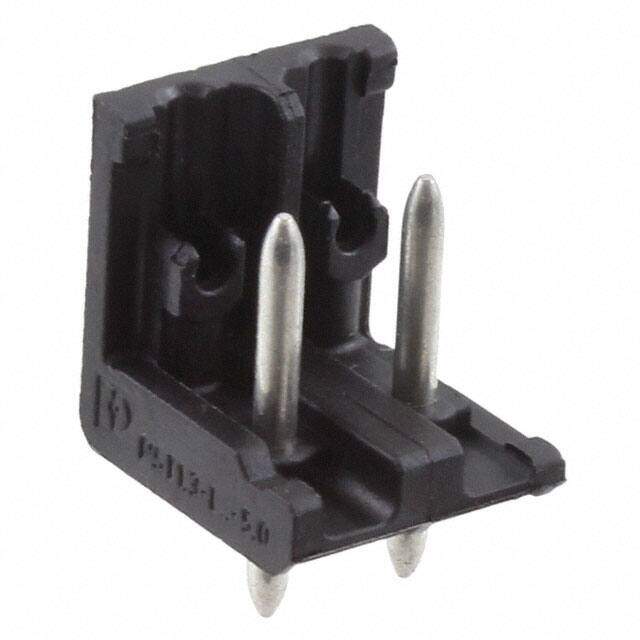

1704437
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Headers & Wire Housings 2 Pos 5mm pitch Thru Hole Pin Strip
PDF
/
Inventory: 1081
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 49.999997g
Technical
Packaging Bulk
Published 2017
Series COMBICON PST
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Partial Shroud
Number of Positions 2
Color Black
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 0.441 11.20mm
Current Rating 13.5A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 2
Safety Approval UL
Header Orientation Vertical
Current - IEC 13.5A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
