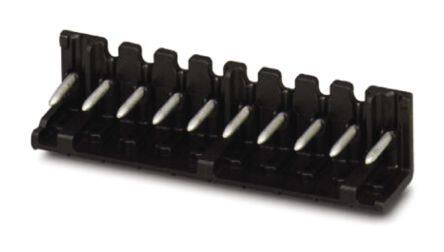

1704408
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Headers & Wire Housings 10 Pos 5mm pitch Thru Hole Pin Strip
PDF
/
Inventory: 1223
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Current - IEC 13.5A
Number of Positions Per Level 10
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 10
Voltage - IEC 400V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 13.5A
Insulation Height 0.441 11.20mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Black
Type Header, Male Pins, Partial Shroud
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series COMBICON PST
Published 2011
Packaging Bulk
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Physical
Weight 49.999997g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
