RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

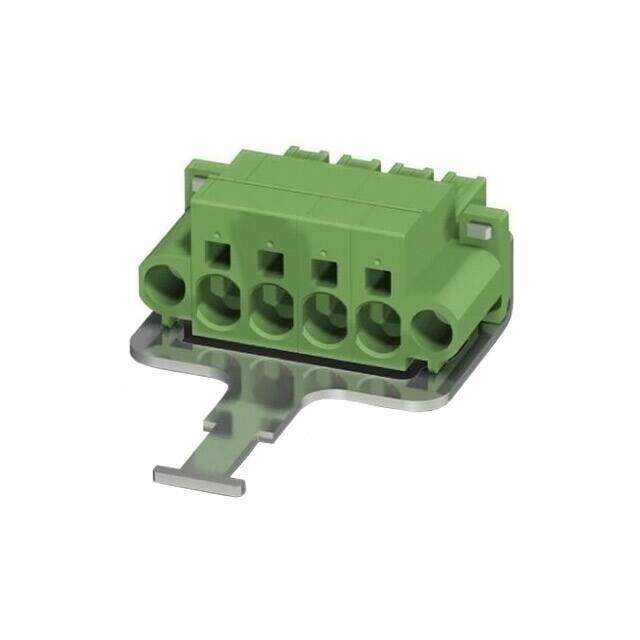

Description Pluggable Terminal Blocks 4 Pos 7.62mm pitch Plug 24-8 AWG Spring
PDF
/
Buying Options
Total Price: USD $12.24
Unit Price: USD $12.242443
≥1 USD $12.242443
≥10 USD $11.549477
≥100 USD $10.895732
≥500 USD $10.278995
≥1000 USD $9.697167
Inventory: 8908
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 907.18474g

Technical

Packaging Bulk
Published 1998
Series COMBICON SPC
Feature Mating Flange, Strain Relief
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 4
Color Green
Number of Rows 1
Voltage - Rated 1kV
Pitch 0.300 7.62mm
Reach Compliance Code unknown
Current Rating 41A
Termination Style Screwless - Push-In Spring
Voltage 600V
Number of Levels 1
Current 35A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 8 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 8-24 AWG
Voltage - IEC 1kV
Number of Ways 4
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-10mm2
Wire Strip Length 15mm
Current - IEC 41A
Fastening Method SPRING LOADED

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
