1702668
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

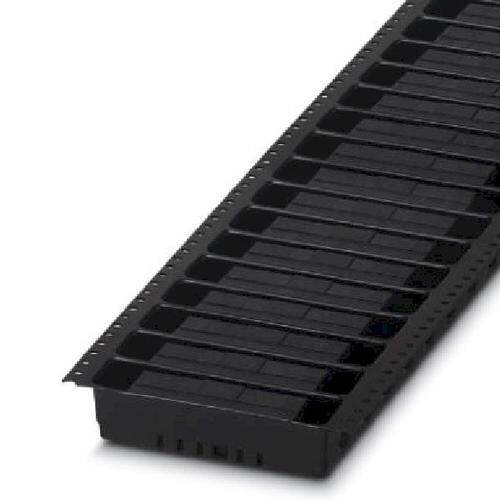

Pluggable Terminal Blocks 11 Pos 3.81mm pitch Through Hole Header
PDF
/
Inventory: 1179
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation 90°, Right Angle
Voltage - IEC 160V
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.055 1.40mm
Housing Color Black
Termination Style Solder
Current Rating 8A
Insulation Height 0.272 6.91mm
Pitch 0.150 3.81mm
Voltage - Rated 160V
Color Green
Number of Positions 11
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON MC
Published 2014
Packaging Tape & Reel (TR)
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
