1702667
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

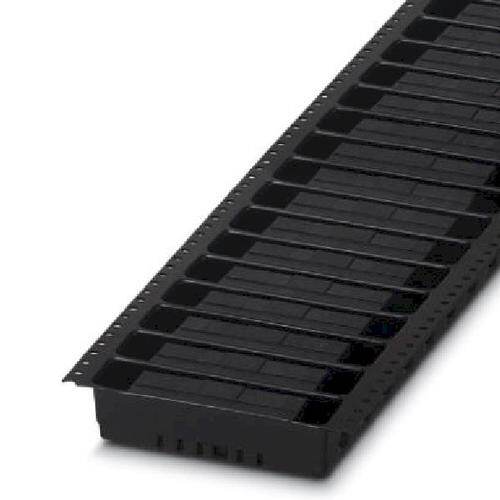

COMBICON MC RoHS Compliant 2014 Tin Terminal Block Header, Male Pins, Shrouded (4 Side) 90° Right Angle 8A 160V 0.272 6.91mm
PDF
/
Inventory: 1207
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Tape & Reel (TR)
Published 2014
Series COMBICON MC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Color Green
Voltage - Rated 160V
Pitch 0.150 3.81mm
Insulation Height 0.272 6.91mm
Current Rating 8A
Termination Style Solder
Housing Color Black
Contact Tail Length 0.055 1.40mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - IEC 160V
Header Orientation 90°, Right Angle
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
