1702013
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

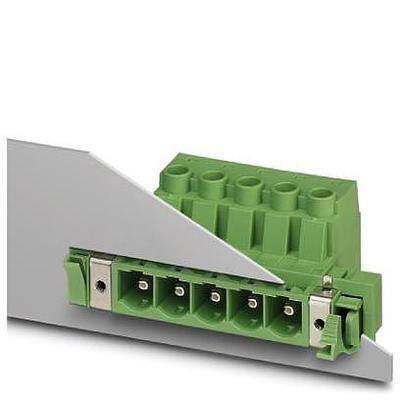

Phoenix Contact 1702013 Contact spacing: 7.62 mm 50 pc(s)
PDF
/
Buying Options
Total Price: USD $52.05
Unit Price: USD $52.045982
≥1 USD $52.045982
≥200 USD $20.767452
≥500 USD $20.072928
≥1000 USD $19.730261
Inventory: 5632
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Technical
Packaging Bulk
Published 2014
Series COMBICON PC
Feature Positions Stamped
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 6
Color Black
Voltage - Rated 1kV
Pitch 0.300 7.62mm
Reach Compliance Code not_compliant
Current Rating 41A
Termination Style Screw
Number of Levels 1
Wire Gauge (Max) 8 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 8-24 AWG
Wire Gauge or Range - mm2 0.2-10mm2
Number of Positions Per Level 6
Dimensions
Length 21.2mm
Width 77.8mm
Compliance
RoHS Status RoHS Compliant
