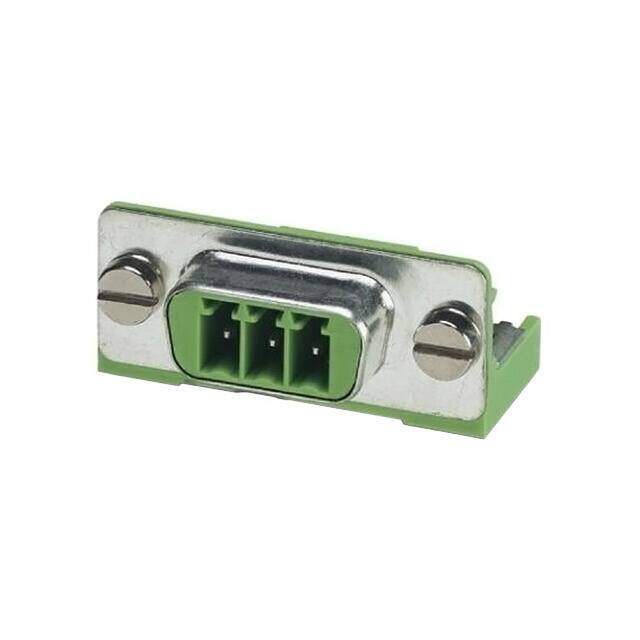

1689310
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Power M 3 POS 3.5mm Solder RA Thru-Hole 3 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $3.59
Unit Price: USD $3.5904
≥1 USD $3.5904
≥10 USD $3.35808
≥100 USD $3.089504
≥500 USD $2.854368
≥1000 USD $2.720045
≥3000 USD $2.70512
Inventory: 28
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation 90┬?, Right Angle
Safety Approval UL
Number of Ways 3
Voltage - IEC 250V
Number of Decks 1
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Termination Style Solder
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.539 13.70mm
Pitch 0.138 3.50mm
Additional Feature PA, UL 94V-0, SHILEDED
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 3
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Power, Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, DB9 Shape, Mating Flange
Series POWER SUBCON
Published 2011
Packaging Bulk
Operating Temperature -20┬?C~80┬?C
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
