1688825
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

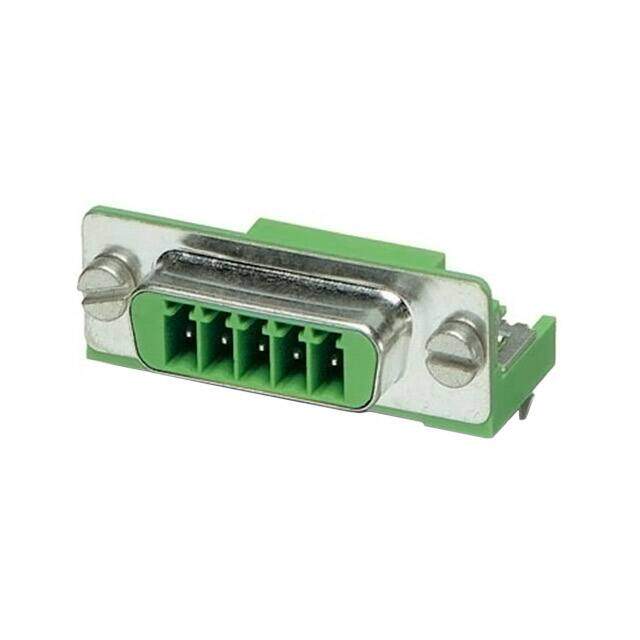

Power to the Board VS-PSC 1.5/5-M
PDF
/
Buying Options
Total Price: USD $21.89
Unit Price: USD $21.8856
≥1 USD $21.8856
≥10 USD $20.13528
≥100 USD $18.602848
≥500 USD $17.727336
≥1000 USD $16.633056
≥3000 USD $15.86992
Inventory: 69
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Operating Temperature -20°C~80°C
Packaging Bulk
Published 2014
Series POWER SUBCON
JESD-609 Code e3
Feature Board Lock, DB15 Shape, Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Power, Receptacle
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Color Green
Voltage - Rated 250V
Additional Feature SHIELDED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.138 3.50mm
Total Number of Contacts 5
Orientation Right Angle
Depth 20.8mm
Insulation Height 0.539 13.70mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Solder
Empty Shell NO
Contact Tail Length 0.138 3.50mm
Max Current Rating 8A
Number of Levels 1
Contact Mating Finish Tin
Header Orientation 90°, Right Angle
Dimensions
Length 39.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
