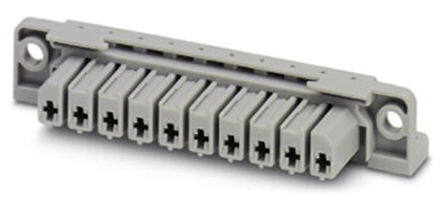

1600030
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Heavy Duty Power Connectors HCC 4-FC
PDF
/
Inventory: 2640
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Module
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2010
Series COMBICON HCC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Color Gray
Insulation Height 0.669 17.00mm
Termination Style Crimp
Number of Levels 1
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge or Range - AWG 12-24 AWG
Voltage - IEC 400V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-4mm2
Number of Positions Per Level 10
Compliance
Material Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
