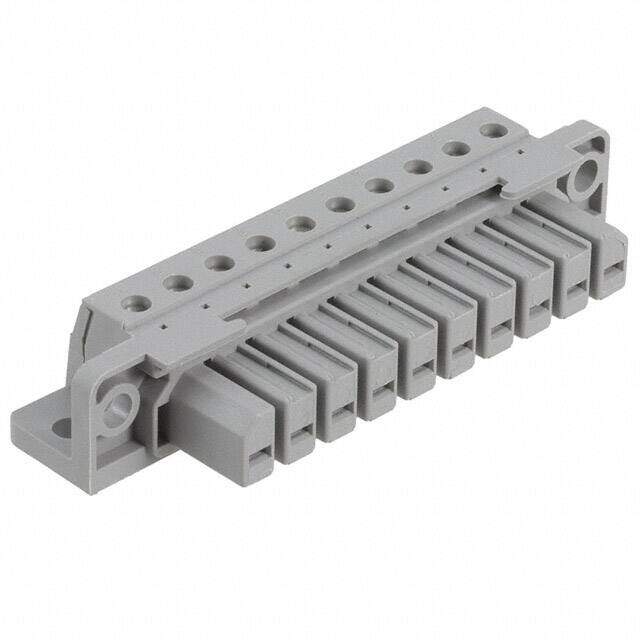

1600001 image
Favorite
1600001 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description DIN Rail Terminal Blocks HCC 4-F
PDF
/
Buying Options
Total Price: USD $34.08
Unit Price: USD $34.0824
≥1 USD $34.0824
≥10 USD $31.35352
≥100 USD $28.96784
≥500 USD $27.60472
≥1000 USD $26.033146
Inventory: 72
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 43.480004g

Technical

Packaging Bulk
Published 2003
Series COMBICON HCC
Feature Mating Flange
Pbfree Code yes
Part Status Active
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 10
Color Gray
Number of Rows 1
Voltage - Rated 500V
HTS Code 8536.69.40.40
Pitch 7.0104mm
Insulation Height 0.709 18.00mm
Reach Compliance Code unknown
Current Rating 25A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 20A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 24 AWG
Wire/Cable Gauge 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 10-30 AWG
Voltage - IEC 500V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 10
Safety Approval UL; CSA; GL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-4mm2
Wire Strip Length 7mm
Current - IEC 25A
Screw Size M3
Wire Cross Section 4 mm2

Dimensions

Height 18mm
Length 31.5mm
Width 31.5mm

Compliance

Material Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
