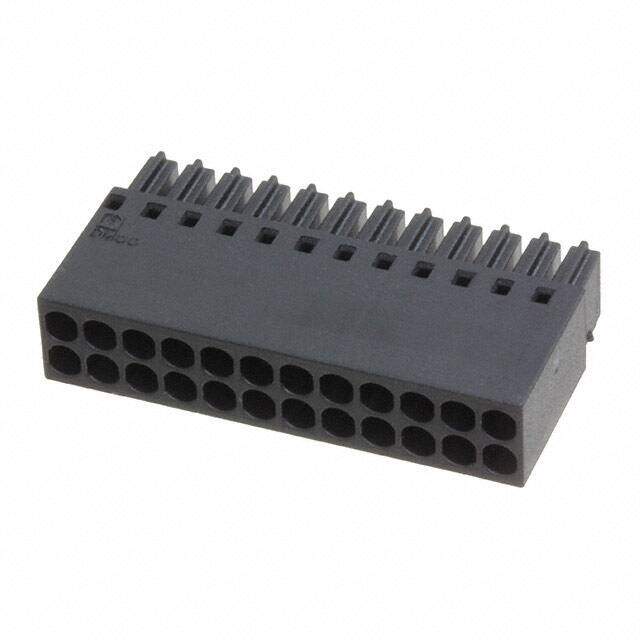

1027614
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 12POS 2.54MM
PDF
/
Buying Options
Total Price: USD $2.13
Unit Price: USD $2.128469
≥1 USD $2.128469
≥10 USD $2.007988
≥100 USD $1.89433
≥500 USD $1.787099
≥1000 USD $1.685943
Inventory: 4062
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Operating Temperature -55°C
Packaging Bulk
Series COMBICON DMCC
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Plug Housing for Female Sockets
Number of Positions 24
Color Black
Pitch 0.100 2.54mm
Insulation Height 0.256 6.50mm
Termination Style Crimp
Number of Levels 2
Wire Gauge or Range - AWG 18-26 AWG
Voltage - IEC 160V
Positions Per Level 12
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14 ~ 0.75mm2
Wire Strip Length 4.1-4.5mm
Current - IEC 6A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
