1027610
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

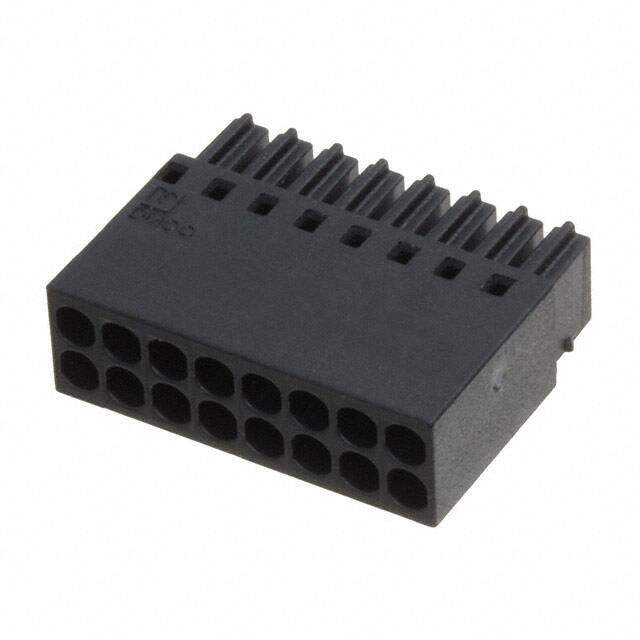

TERM BLOCK PLUG 8POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
Inventory: 82
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 6A
Wire Strip Length 4.1-4.5mm
Wire Gauge or Range - mm2 0.14 ~ 0.75mm2
Plug Wire Entry 180°
Positions Per Level 8
Voltage - IEC 160V
Wire Gauge or Range - AWG 18-26 AWG
Number of Levels 2
Termination Style Crimp
Insulation Height 0.256 6.50mm
Pitch 0.100 2.54mm
Color Black
Number of Positions 16
Type Plug Housing for Female Sockets
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series COMBICON DMCC
Packaging Bulk
Operating Temperature -55°C
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
