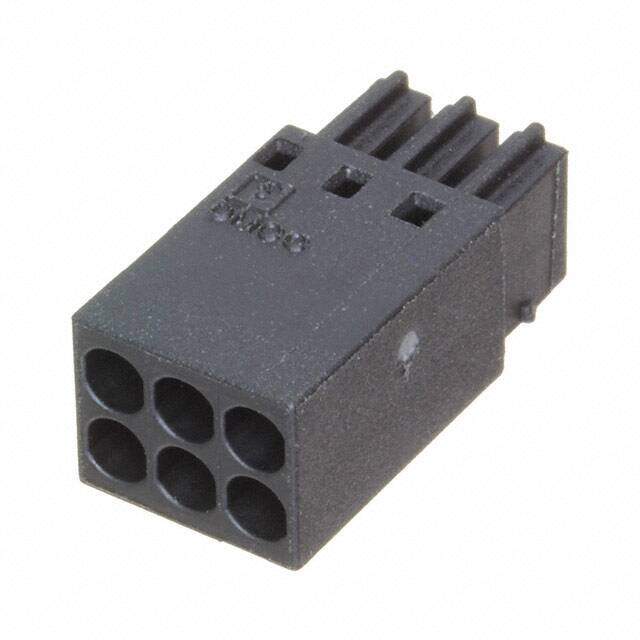

1027605
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 3POS 2.54MM
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Operating Temperature -55°C
Packaging Bulk
Series COMBICON DMCC
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Plug Housing for Female Sockets
Number of Positions 6
Color Black
Pitch 0.100 2.54mm
Insulation Height 0.256 6.50mm
Termination Style Crimp
Number of Levels 2
Wire Gauge or Range - AWG 18-26 AWG
Voltage - IEC 160V
Positions Per Level 3
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14 ~ 0.75mm2
Wire Strip Length 4.1-4.5mm
Current - IEC 6A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
