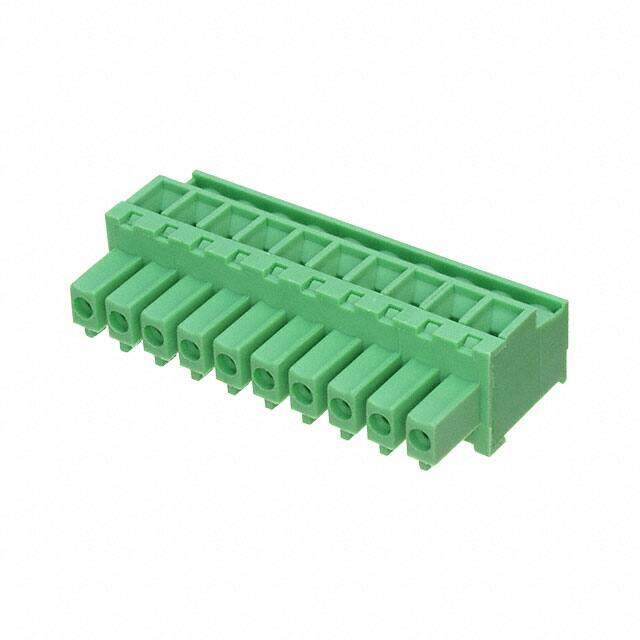

0395137010
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Eurostyle Block F 10 POS 3.81mm Screw ST Cable Mount 8A/Contact Eurostyle?
PDF
/
Buying Options
Total Price: USD $2.87
Unit Price: USD $2.8688
≥1 USD $2.8688
≥10 USD $2.18592
≥100 USD $2.04688
≥500 USD $1.819664
≥1000 USD $1.780064
≥3000 USD $1.641587
Inventory: 266
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Wire Strip Length 6.5mm
Plug Wire Entry 270°
Torque - Screw 0.23 Nm (2.0 Lb-In)
Current - UL 8A
Wire Gauge or Range - AWG 16-30 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Termination Style Screw - Rising Cage Clamp
Insulation Height 0.750 19.05mm
Pitch 0.150 3.81mm
Color Green
Number of Positions 10
Type Plug, Female Sockets
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Eurostyle ESE 39513
Packaging Bulk
Operating Temperature -40°C~115°C
Physical
Housing Material Polyamide (PA66), Nylon 6/6
Mounting Type Free Hanging (In-Line)
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 12 Weeks
